• AdBlue tank on left-hand side

• Preparation kit for spot lamp in cab roof and front, max 280 W

• White front fog lamps

• Preparation kit for LED reverse/work lamps at rear chassis, 3-pos switch (On/Off/Reverse auto On)

• Daytime running lamps (LED)

• Emergency brake light

• Trailer connection bracket mounted between frame rails in overhang area

• Air suspension with one ride height

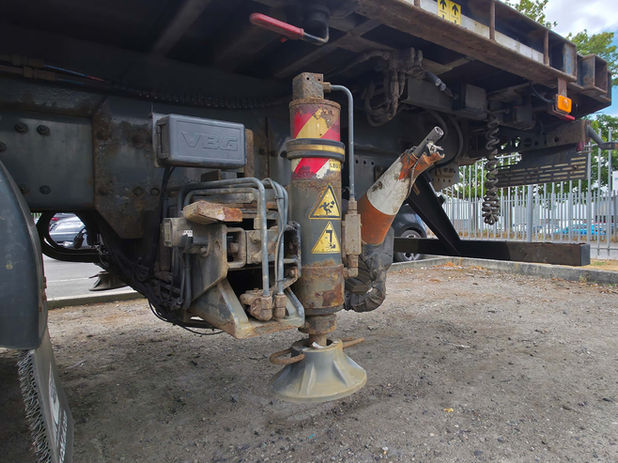

• Free frame space on both sides to make room for crane legs or other equipment

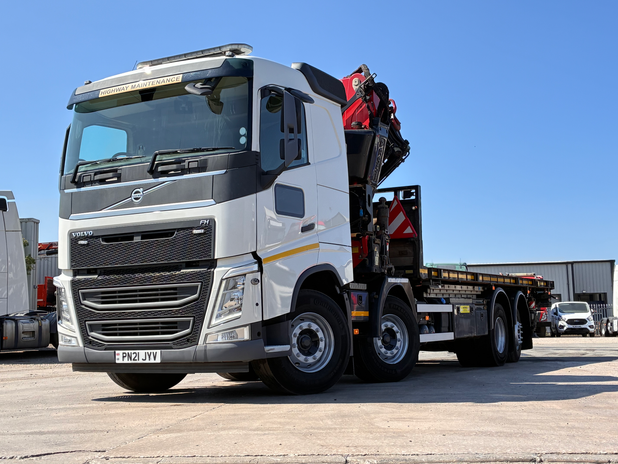

• Diesel engine, Euro 6, 12.8 litres, 460 hp/338 kW

• Volvo Engine Brake, VEB+ (high efficiency compression brake with exhaust pressure governor, EPG)

• AdBlue tank: usable volume 48 litres, 560 mm high, mounted on chassis side

• I-Shift with basic PTO functions

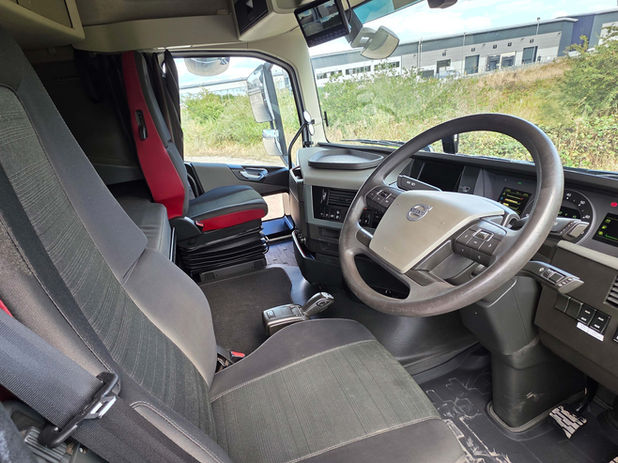

• I-Shift, gear shift lever on seat

• VPT AUTOMATED TRANSMISSION 2600NM 12SPEED

• Rear engine, clutch-ind. PTO, splined shaft groove (fem), close-coupled pump DIN 5462/ISO7653

• Gearbox high-speed PTO, 1 rear connection DIN 5462/ISO 7653 for plug-in pump, 600 Nm

• I-Shift with enhanced software for construction and off-road applications

• EBS (Electronic Braking System), Medium package

• Power steering pump with variable displacement

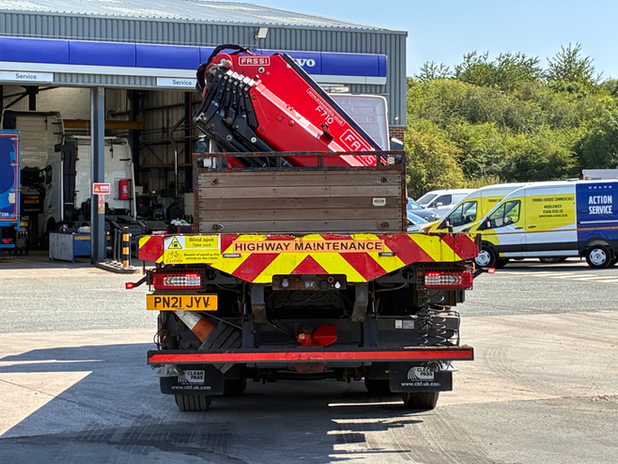

Lifting Class:

Highest moment 68,50 tm / 7

68,50 tm / 672kNm

Max Outreach:

up to 30,45 m with jib

Overall Dimensions:

from W 2,50 m , L 1,50 m, H 2,45 m

Electronic/Hydraulic Equipment:

IMC integral machine control

FX900 control unit

D900 digital distributer bank

V7RRC radio remote control

ADC automatic dynamic control

Flow sharing

Characteristics:

Xhe-dynamic version (2) with linkage

XP device

Prolink system with double linkage

Continuous rotation on a slew ring
